Premium motor capacitor set (1x 3.5μF and 2x 4.5μF) for Revox A77, B77 & PR99 (set of 3)

Capacitors with soldering lugs and metal bolts as a custom-fit replacement for the Revox A77, B77 and PR99 motor capacitors

  • Capacitors with solder lugs
  • Custom-fit installation and matching specifications for Revox A77, B77 and PE99
  • Metallized polypropylene aluminum body with metal bolts
  • Motor capacitors in MKP-Si technology with overpressure switch comply with EN 60252 according to safety class P2
  • exact technical specifications see below

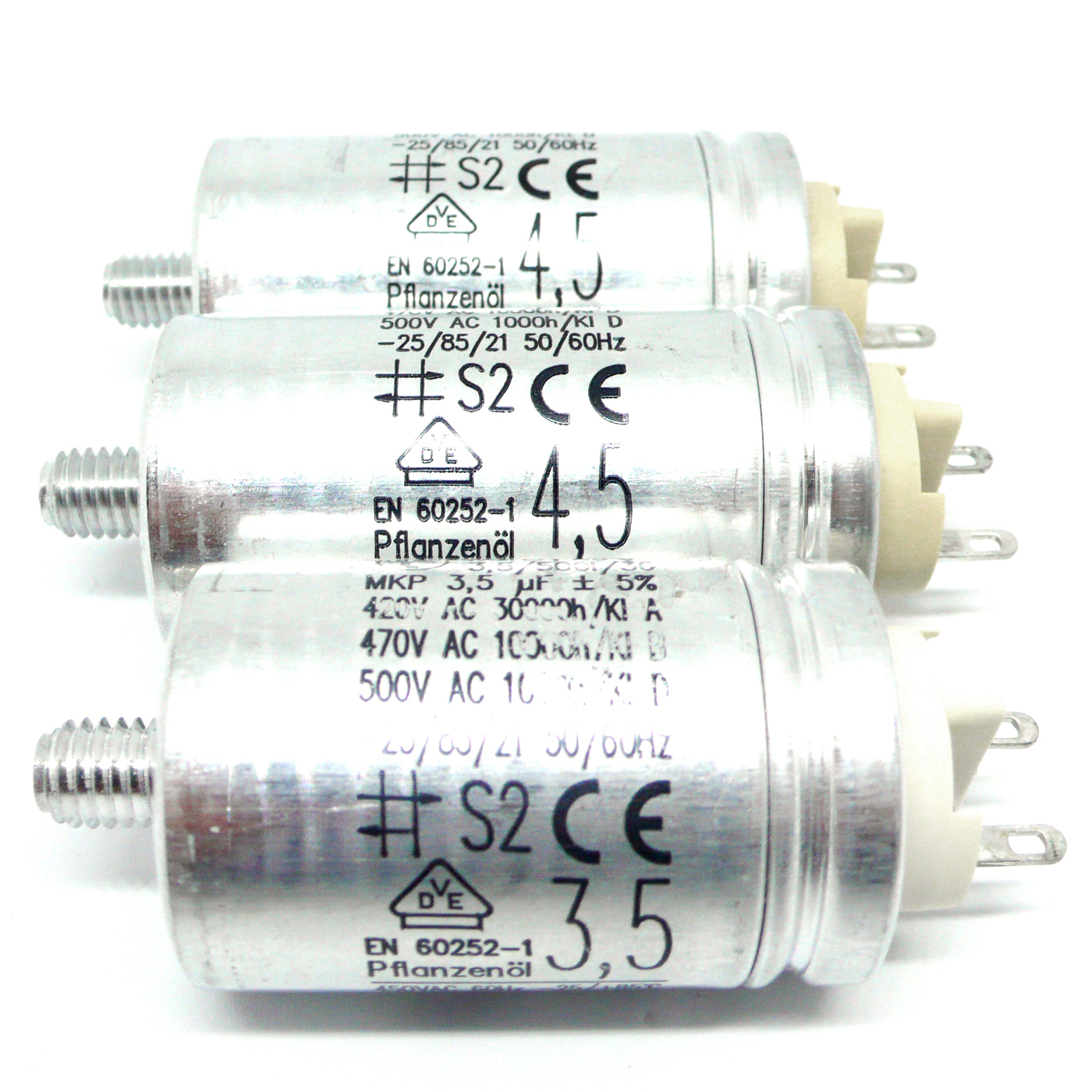

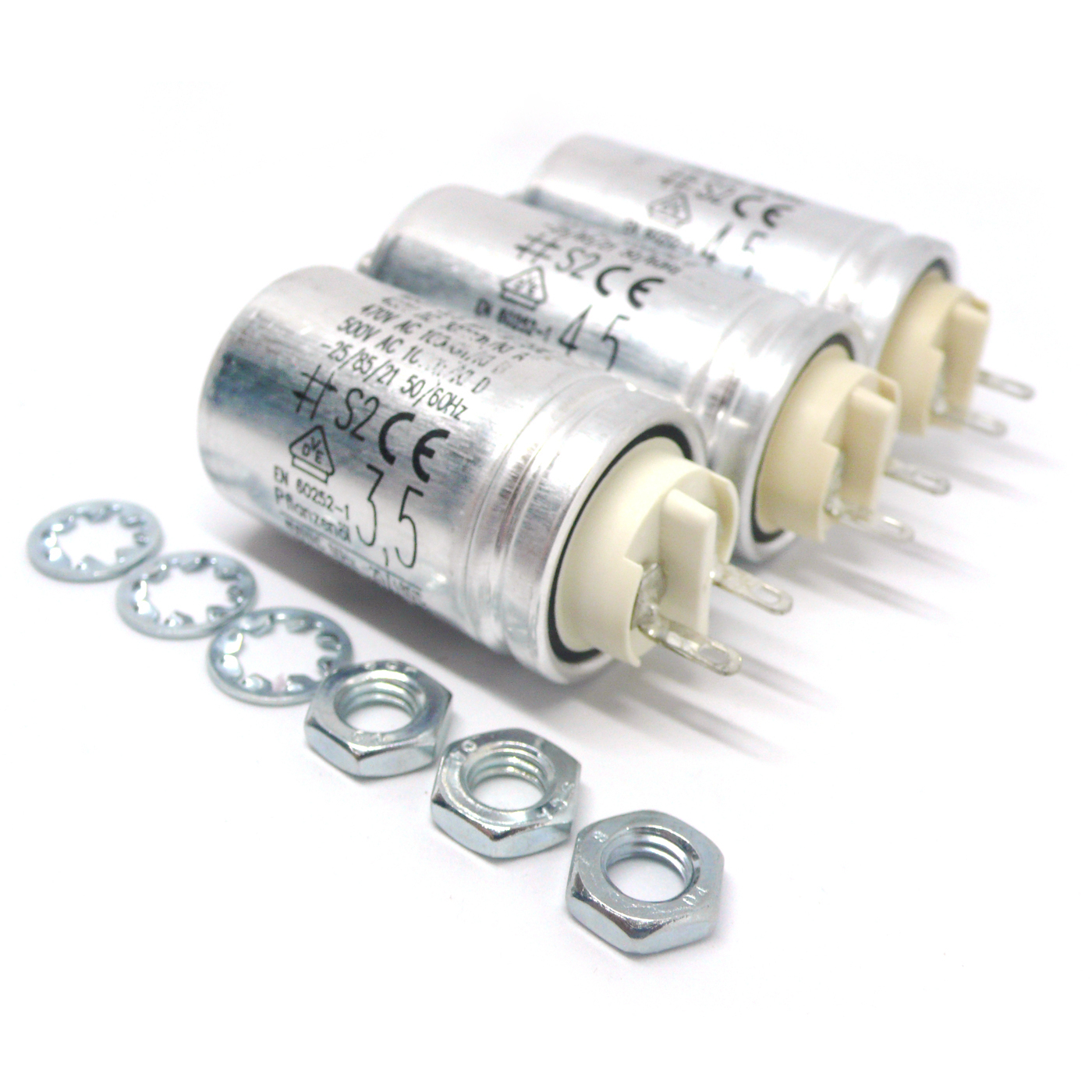

  • 1x set of 3 motor capacitors for Revox B77 consisting of 1x motor capacitor 3.5μF and 2x motor capacitor 4.5μF, 3x lock washer, 3x nut

€17.95*

Content: 3 Piece (€5.98* / 1 Piece)
piece
  • Ships on Monday if order is paid by Monday, 2:00 p.m
  • worldwide shipping from €7.45
  • Budget Shipping just 2,95 € (domestic Germany)
  • One month right of withdrawal
SKU: 10074
The motor or drive capacitors of the Revox B77 are often in need of an overhaul due to their age. The three capacitors are supplied with bolts. The capacitors, which are equipped with soldering lugs, are soldered to the cables of the old Revox capacitors without changing the connections. The capacitors are produced in the EU.
Technical specification
  • Rated voltage 400V - 500V AC
  • Rated frequency 50 Hz / 60 Hz
  • Capacitance tolerance ± 5%
  • Max. permissible operating voltage 1.1 x UN
  • Max. permissible operating current 1.3 x IN
  • test voltage connection / connection 2.0 x UN; 50Hz; 2 s
  • test voltage connection / housing 3.6 kV; 50Hz; 2 s
  • Creepage distances ≥ 8 mm
  • Clearance ≥ 6 mm
  • Fastening M 8 x
  • Max. tightening torque 5 Nm (M 8 x 10)
  • Climate class 25/85/21 according to IEC 60068
  • Temperature range - 25°C ... + 85°C
  • Service life classes -25/+85°C Class A - 30,000 h - 420 V
  • Installation interior
  • Any installation position
  • Protection class IP 00 - without protective cover
  • EN 60252 standard
