VU meter LED lighting kit for Revox B77 / PR99 in Atlantic blue

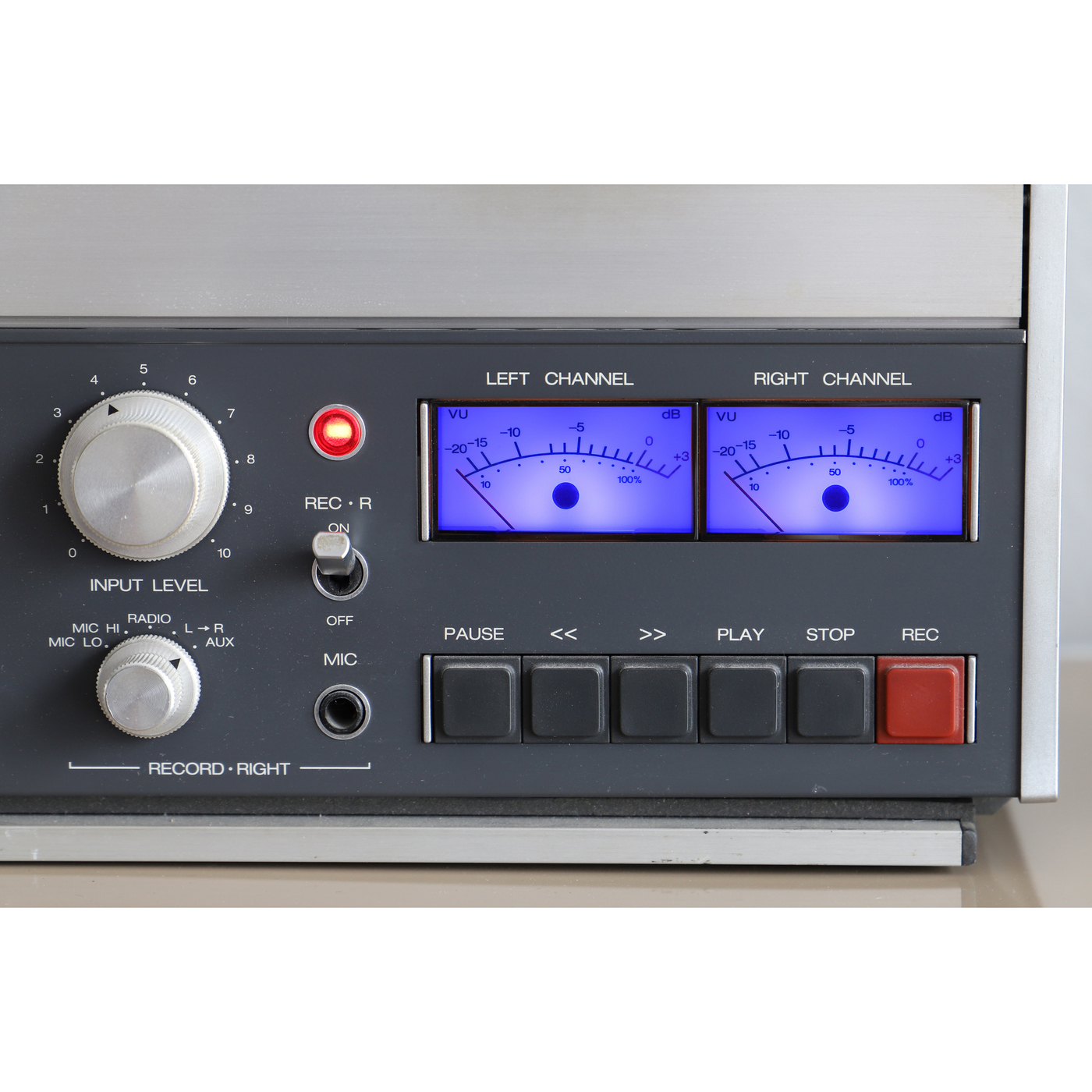

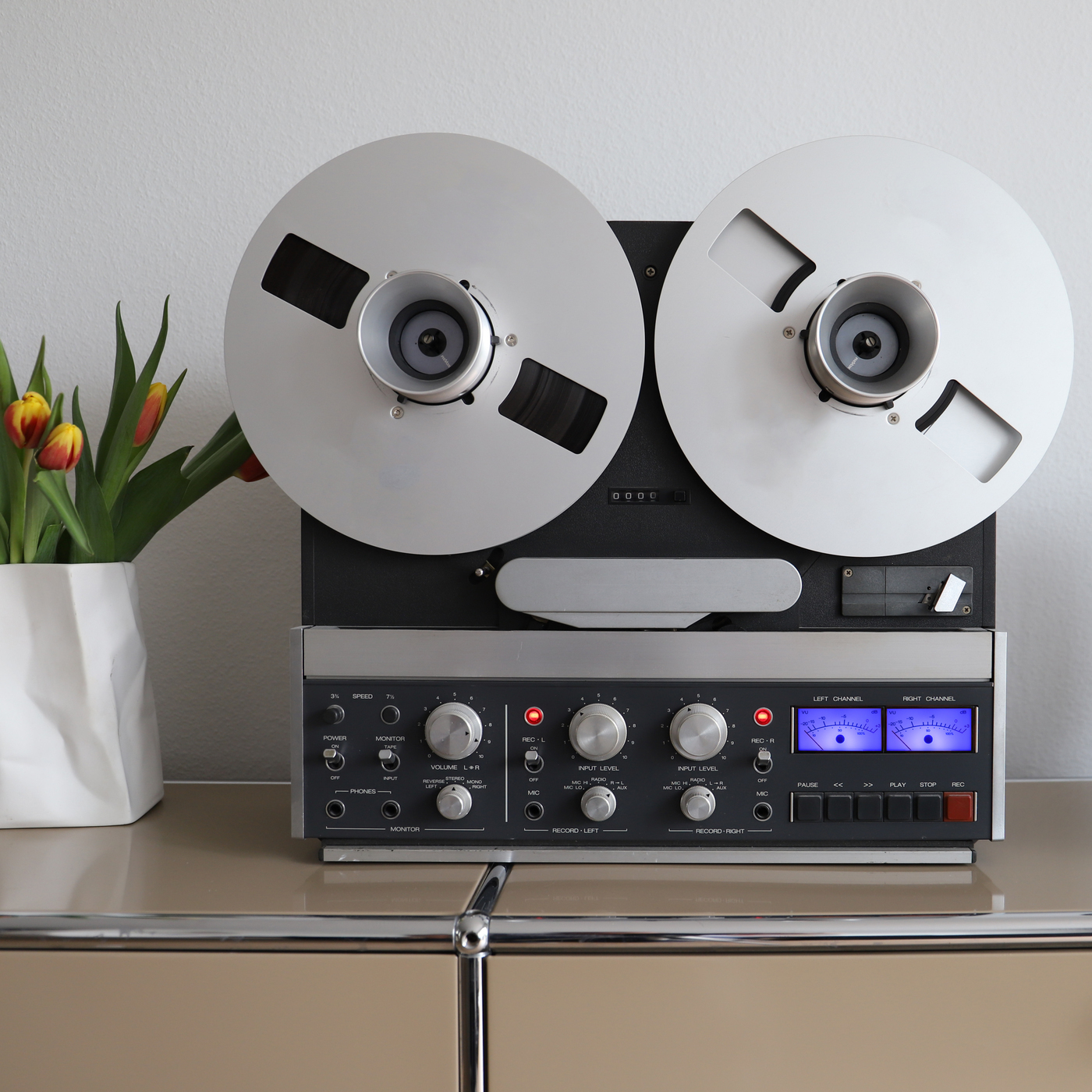

The conversion to LED lighting gives the Revox B77/PR99 a new, modern face

  • Perfect fit in Revox B77 and PR99. No soldering required, all connections are pluggable.
  • Illustrated instructions are provided as a download link.

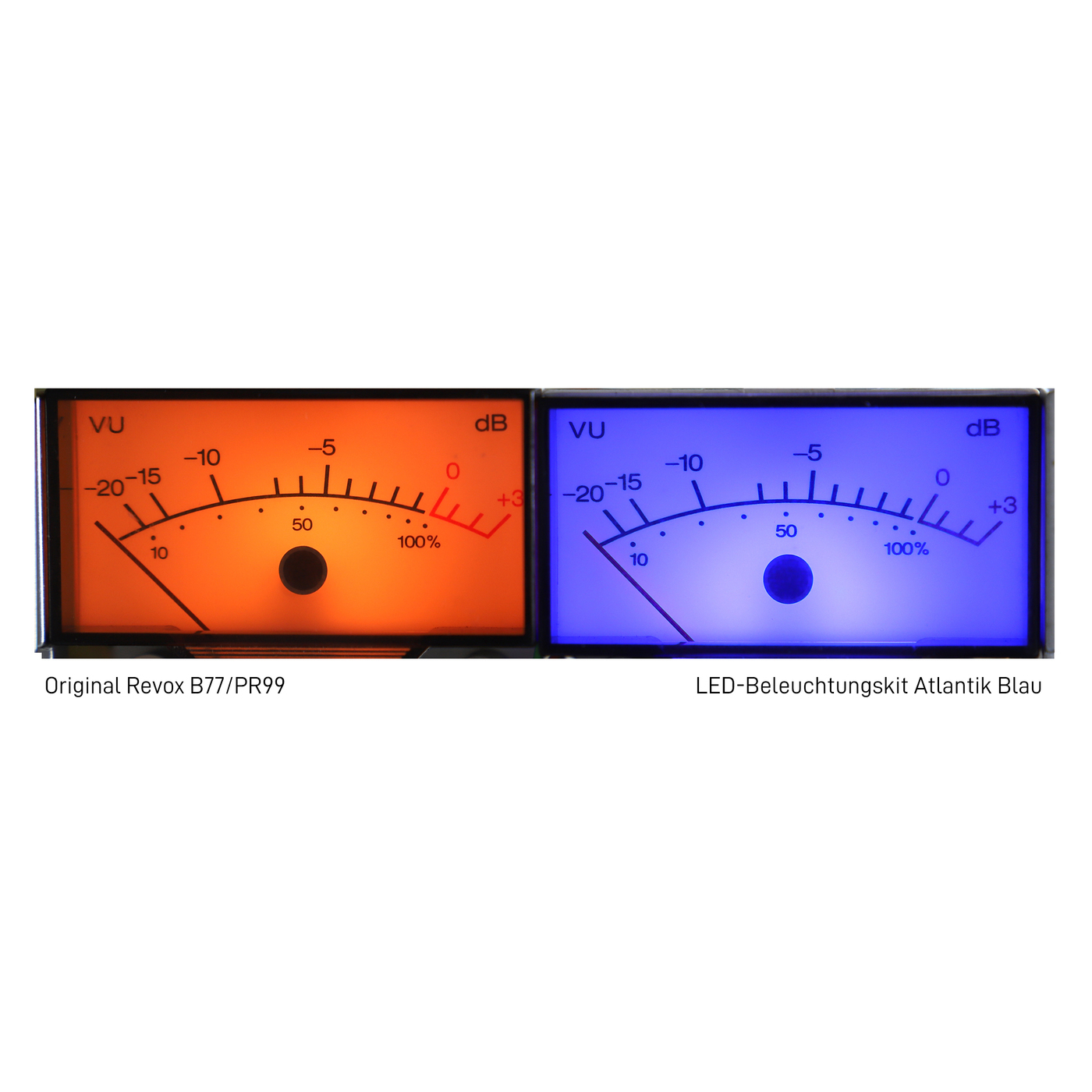

  • With the built-in LEDs with a beam angle of 145 degrees, a balanced background lighting is achieved.
  • Available in the variants: warm white, pure white, cold white, Atlantic blue, red, orange, yellow
  • This variant: Atlantic Blue
  • 1x VU meter LED lighting kit in Atlantic blue 465nm 2,500mcd

€16.95*

Content: 1 Piece
  • Ships on Monday if order is paid by Monday, 2:00 p.m
  • worldwide shipping from €7.45
  • Budget Shipping just 2,95 € (domestic Germany)
  • One month right of withdrawal
SKU: 10067
The LED lighting kit for the VU meters of the Revox B77 and Revox PR99 have been designed to fit perfectly and have been extensively tested.
The lighting kits are available in a total of 7 color variants, please note the variant selection. This variant: Atlantic Blue

The LEDs are installed without soldering and all connections are pluggable.

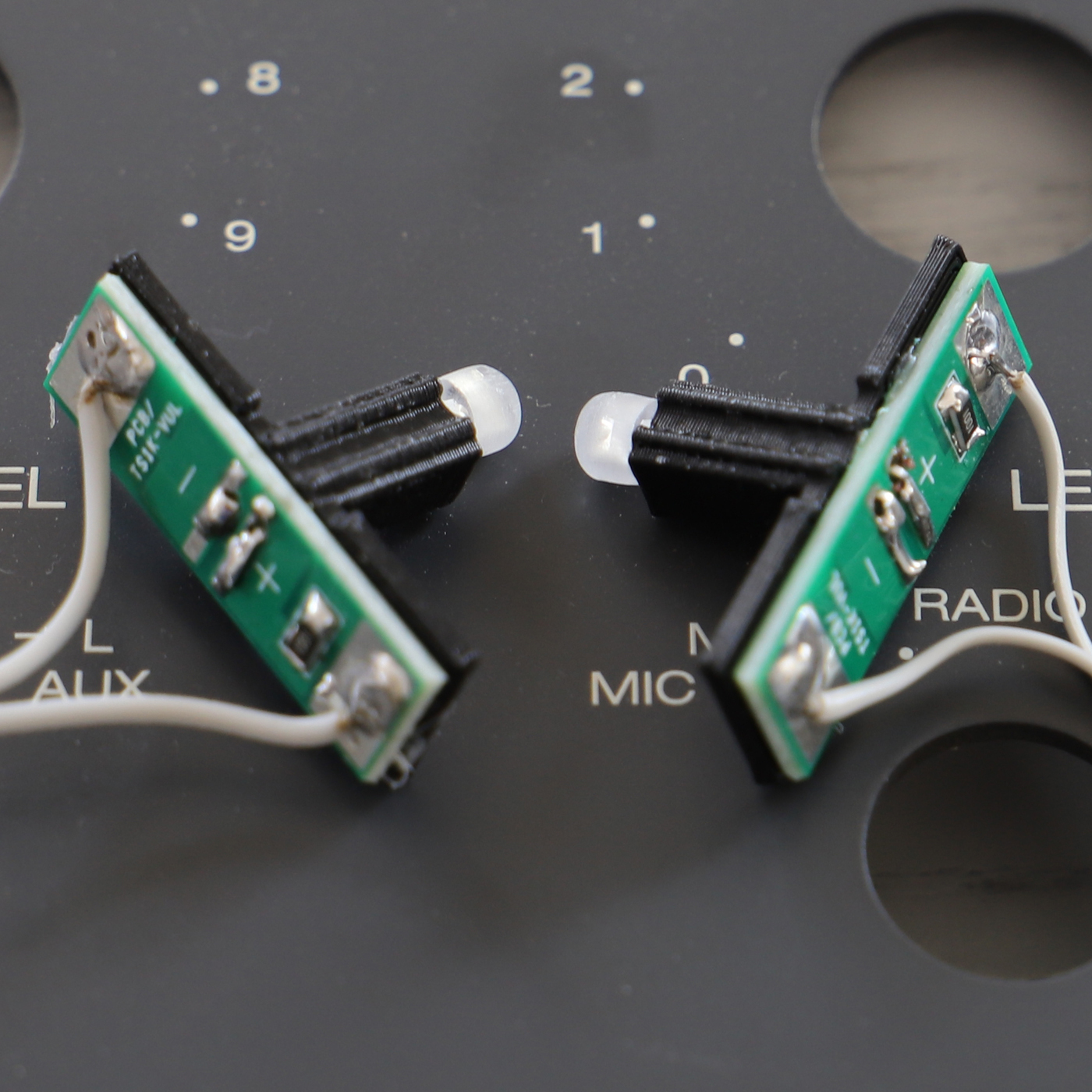

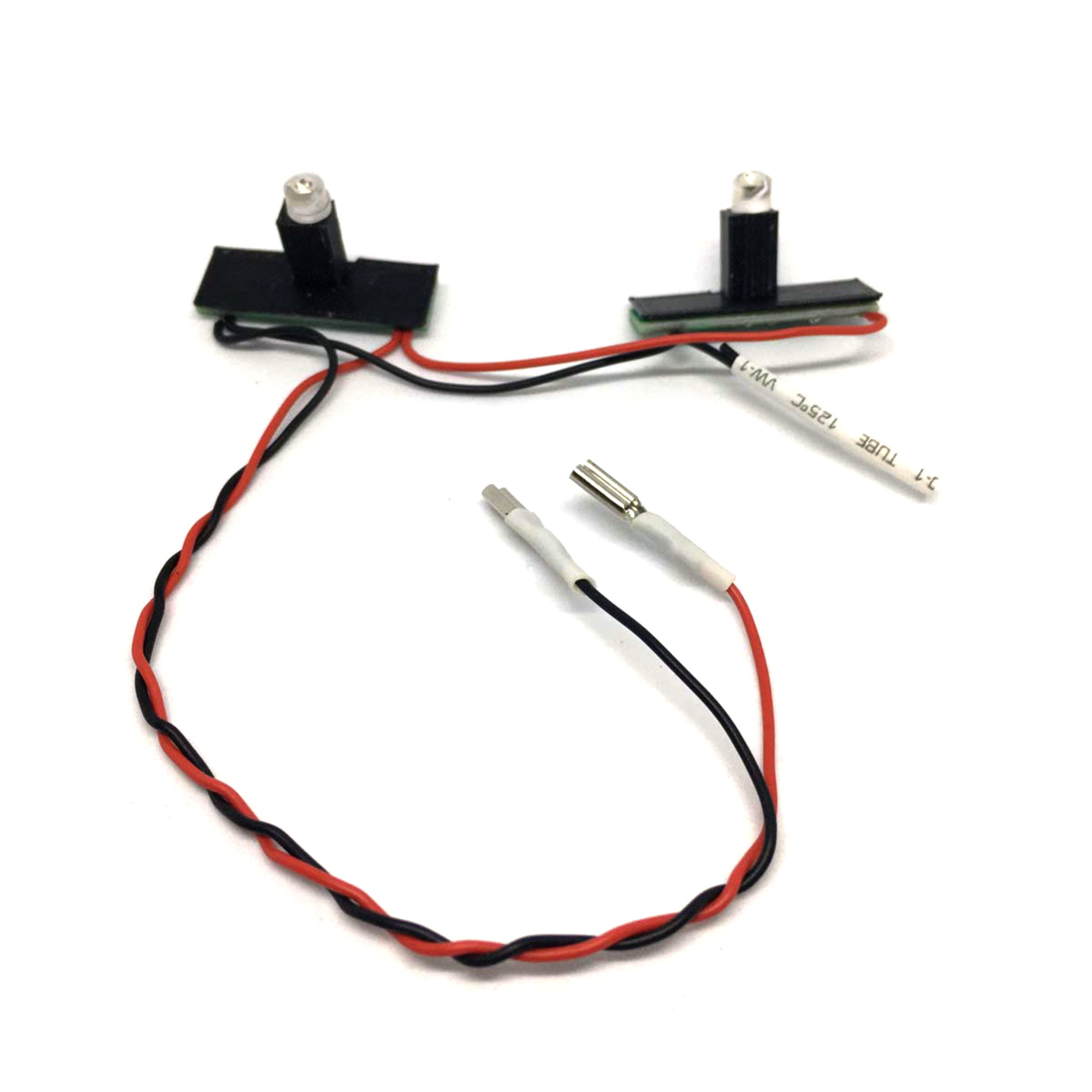

First, remove the old light bulb sockets and insert the new sockets into the opening provided in the VU meter housing. The cable harness for the power supply is custom-made and plugged into the existing connections. You will receive illustrated instructions as a download link (DE/EN) after purchase.

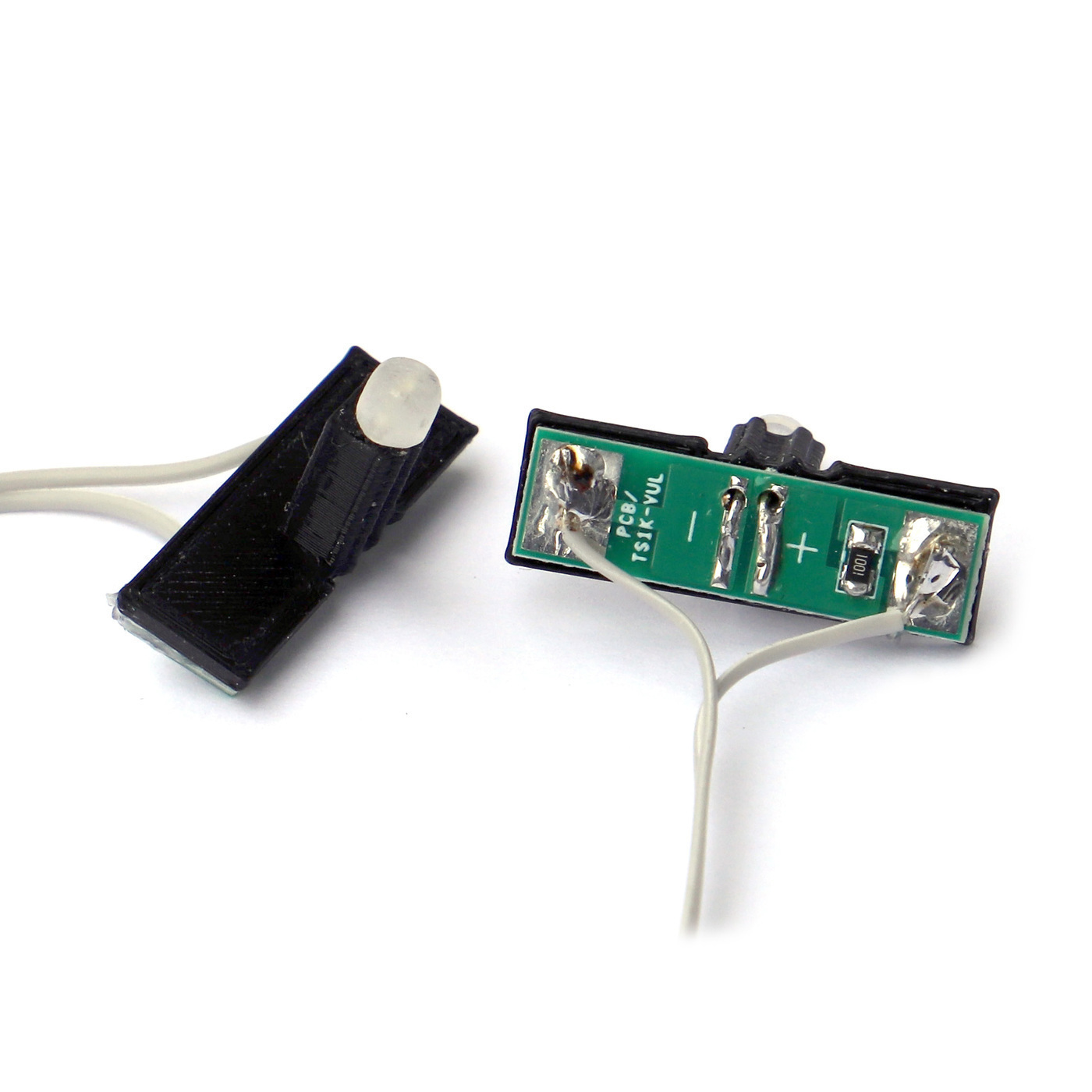

The LED lighting kit consists of 2 selected LEDs each, which ensure a very balanced background lighting with a high beam angle of 145 degrees. The lens is ground by hand and provides a diffuse and very balanced radiation ratio. The kit is delivered ready for connection and can be installed without soldering.
