VU meter switching front/back band for Grundig TS1000
Expands the Grundig TS1000 with the switching function of front and rear band display on the level meter.
- Extension kit for the Grundig TS1000
- Allows you to switch between front and rear band displays on the level meter
- DIY installation kit with detailed installation instructions. No modification necessary on the front of the device.

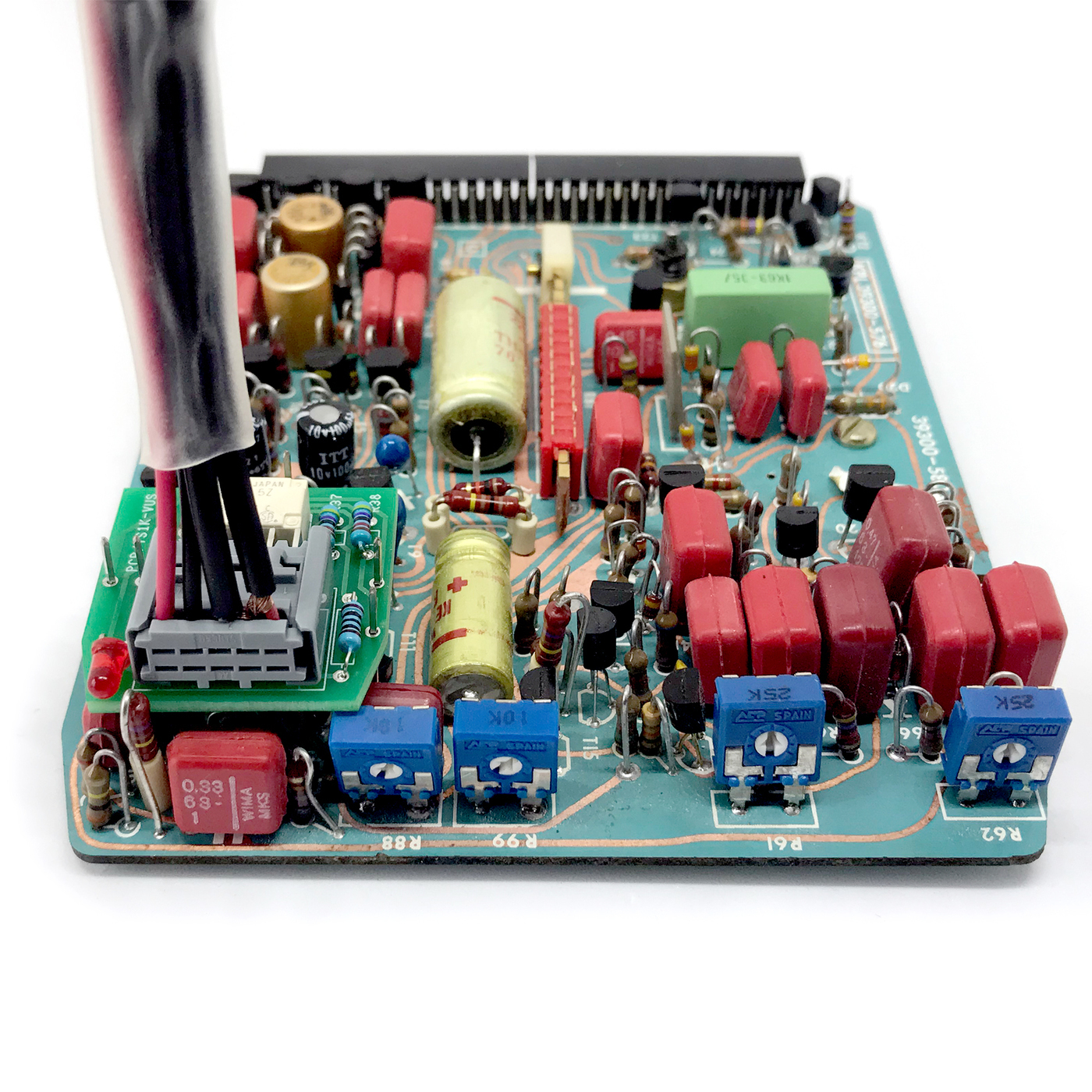

- Micro relay is placed on automatic mixer amplifier board, micro switch on headphone amplifier board. Playback signal is tapped on main board.
- Installation requires soldering. Retrofit possible without any problems. Detailed documentation in German and English.
- 1x VU meter switching front/back band for Grundig TS1000 consisting of: 1x piggyback circuit board, 1x cable set, assembled and labeled, 1x microswitch with roller lever, 2x nylon screws for fastening the microswitch, 2x nylon washers, 2x nuts made of nylon, 1x detailed installation instructions in German and English
€84.95*
Content: 1 Piece
- Ships on Monday if order is paid by Monday, 2:00 p.m
- worldwide shipping from €7.45
- Budget Shipping just 2,95 € (domestic Germany)
- One month right of withdrawal
SKU: 10053
With this add-on kit, the TS1000 display of the VU meter can be switched from pre- to post-band display. The level indicator - VU meter - of the Grundig TS1000 was delivered from the factory on a pre-recording tape. In this display method, however, one does not know what really arrives on the tape. Stimulated by a customer request, the TS1000 was to be modified mechanically and electronically. With this extension, bands can now be controlled even more optimally.

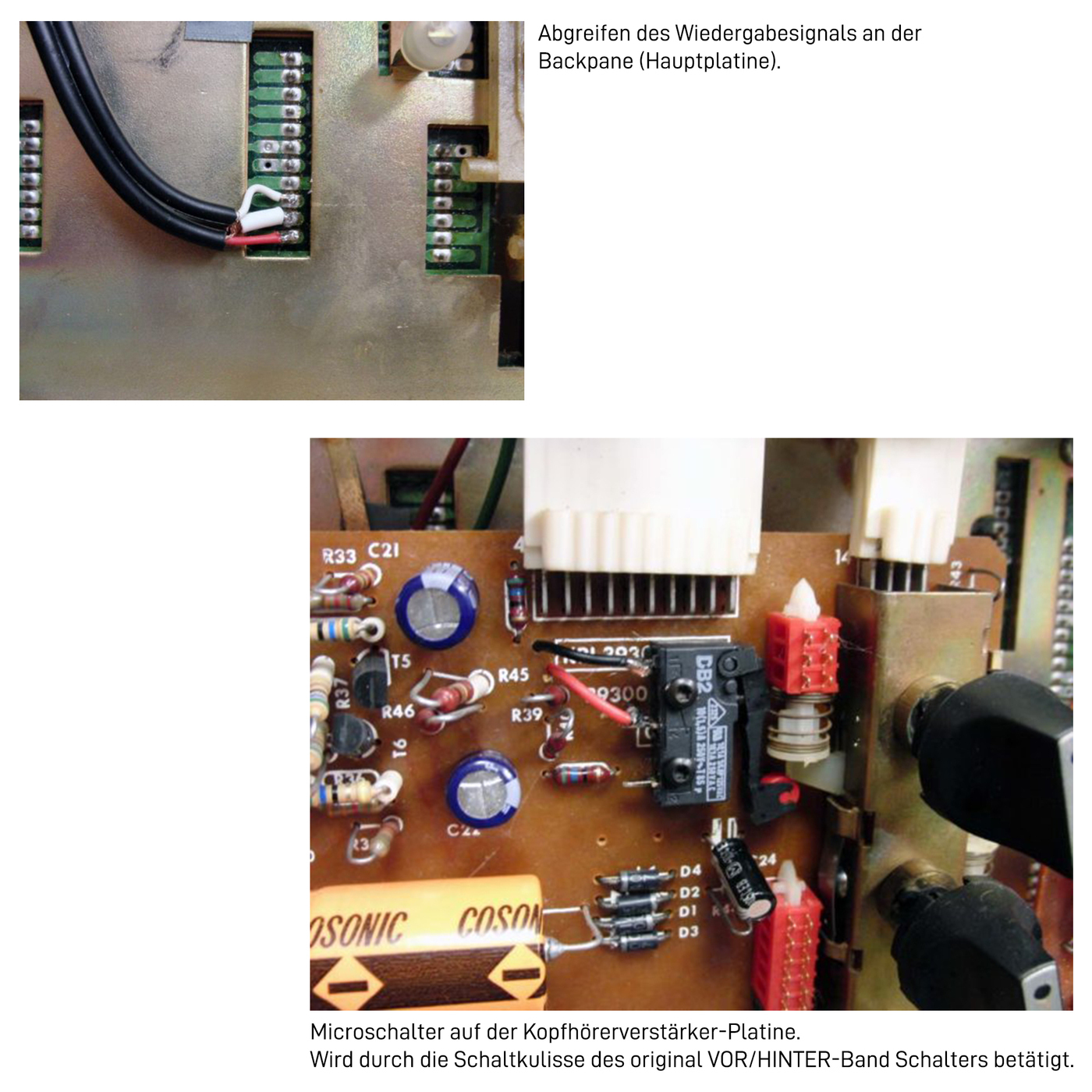

A high-quality micro-relay now switches between pre- and post-band display. The relay is controlled with 5 volts. These are tapped at the lighting of the VU meters. The micro switch for the relay is located on the headphone amplifier circuit board. The switching gate of the factory pre/rear band switch is used to take over the control of the relay. No modifications are necessary on the front of the machine. Knowledge of electronics and soldering is an advantage for installation.
To be on the safe side, the factory settings are restored if the relay fails.
All modifications are pluggable. Only two resistors R37/R38 have to be soldered in for dismantling.
Further information can be found in the blog: https://ts1000.de/2019/09/10/vu-meter/
A high-quality micro-relay now switches between pre- and post-band display. The relay is controlled with 5 volts. These are tapped at the lighting of the VU meters. The micro switch for the relay is located on the headphone amplifier circuit board. The switching gate of the factory pre/rear band switch is used to take over the control of the relay. No modifications are necessary on the front of the machine. Knowledge of electronics and soldering is an advantage for installation.
To be on the safe side, the factory settings are restored if the relay fails.
All modifications are pluggable. Only two resistors R37/R38 have to be soldered in for dismantling.
Further information can be found in the blog: https://ts1000.de/2019/09/10/vu-meter/
